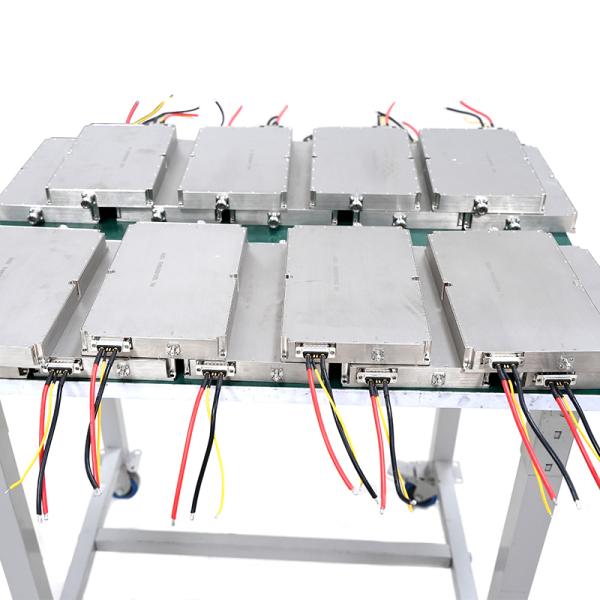

High power 100W wifi 5.2ghz 5.8ghz wireless signal FPV blocker module
Model: TXC050VHN
The 100W high power rf jammer module operate in 28V voltage can long distance jamming the illegle drone FPV .And it is a important part of anti drone system.The TXC050VHN has wide applications in border patrol, civilian security, and military fields.
The TXC050VHN can be customized from 5ghz to 5.8ghz ,it is stable bandwidth and output stability.
| No. | Item | Data | Unit |
| 1 | Frequency | Customized | MHz |
| 2 | Test voltage | 28 | V |
| 3 | Current | 10.2 | A |
| 4 | Output | 100 | W |
| 5 | Gain | 50 | dB |
| 6 | Output stability | 1 | dB |
| 7 | Connector | N / male |
| 8 | Output connector VSWR | ≤1.30 (No power and VNA test) |
| 9 | Power supply wire | Red+Black+Enable wire |
| 10 | Enable Control | High ON Low Off |
| 11 | Out shell Size | 172*82*21 | mm |
| 12 | Mount hole | 167*77 | mm |
| 13 | Weight | 700 | g |
| 14 | Work Temperature | -40~+65 | ℃ |
| 15 | Out shell material | Aluminum |
| 16 | Vibration need | Car load OK |
Texin Electronics has been focusing on the jammer industry for many years and has a stable and reliable industrial chain. Due to strict control of quality and effect, it has accumulated many loyal customer groups all over the world
NOT only jammer module, we can also provide accessories for the production of jammers,
such as: components, antennas, RF power amplifier modules, jammers. And provide technical support when necessary.
This is something that most suppliers cannot do.
Factors affecting the effect of signal jammer
- 1. The power of shielding equipment, the greater the equipment power, the longer the shielding distance.
- 2. The antenna gain of the jammer, the higher the gain, the better the effect
- 3. The components used in the jammer and the professionalism of the technician
- 4. The local signal strength, the weaker the local mobile phone signal, the longer the shielding distance
